Furnaces

Responsible: Alexandra Gonçalves and Sónia Pereira

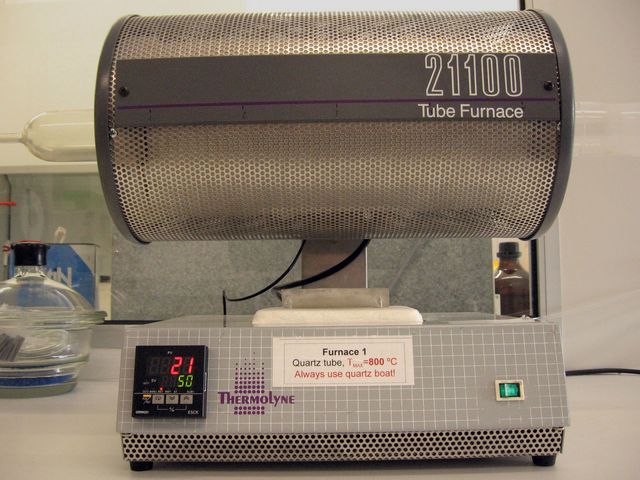

1) Thermolyne Tube Furnace F1100
a. Quartz tube about 4.6 cm diameter;
b. Max. working temperature (TMAX = 800^oC)
c. Sample dimensions below 4.6x4.6 cm;

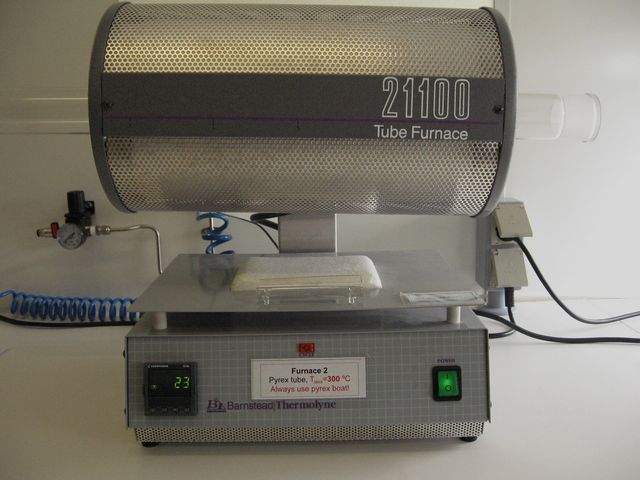

2) Thermolyne Tube Furnace F1100
a. Pyrex tube about 4.6 cm diameter;
b. Max. working temperature (TMAX = 300^oC)

c. Sample dimensions below 4.6x4.6 cm;

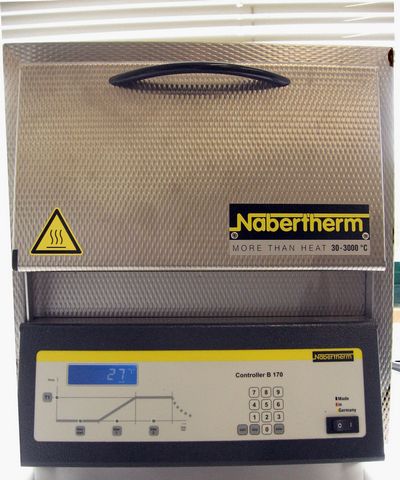

3) Nabertherm furnace
a. Max. Temperature ~3000^oC
b. Chamber dimensions ~16x10x16 cm
c. Sample dimensions below 16x16 cm

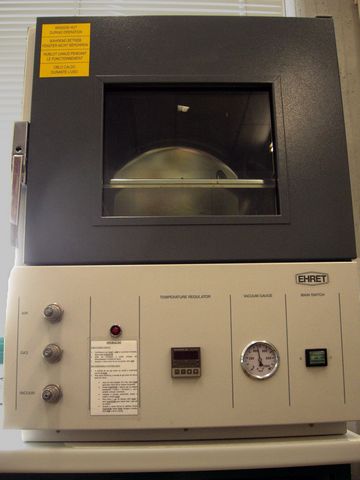

4)  EHRET – VT970 furnace
a. Max. Temperature ~200^oC
b. Allows vacuum and gases introduction
c. Chamber dimensions around 31x36 cm
d. Sample dimensions below 31x36 cm

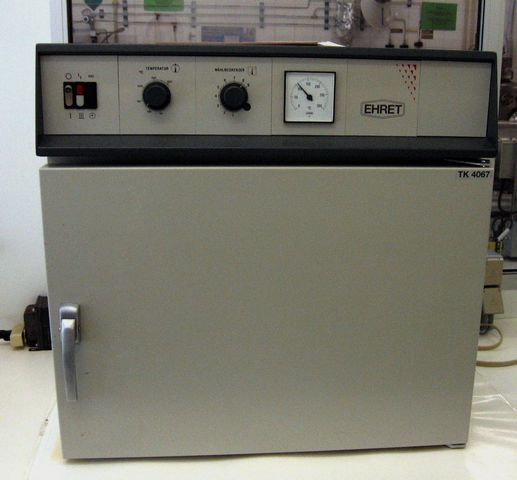

5) EHRET – TK 4067 furnace
a. Max. Temperature ~300^oC
b. Chamber dimensions around 46x41x31
c. Sample dimensions below 46x41 cm
