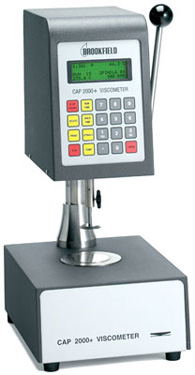

Viscometer - Brookfield CAP 2000+

Location: Lab 0.6

Responsible: Daniela Salgueiro



Description:
Our lab is equipped with several printings techniques and to support the development of new inks we acquired the CAP 2000+ viscometer. It allows us to determine viscosity of different kinds of inks from low to high viscosity inks using different temperatures.

Main Features
- variable speed (5 – 1000 rpm)
- Automatic cone/gap positioning
- Small sample size: less than 1 mL
- Built-in Peltier Plate: For temperature control of sample: L Series: 5°C-75°C

- Capcalc32 software



We have two different Cone Spindles

	Viscosity Range (Cp)	Sample Volume (μL)	Shear Rate (sec-1)
CAP-01	5 - 1600	67	13.3
CAP-09	200 -44000	100	2.0
