Spectrometer UV-Vis-NIR - Shimadzu UV 3101pc

Location: Optical Lab

Responsible: Diana Gaspar



Description:

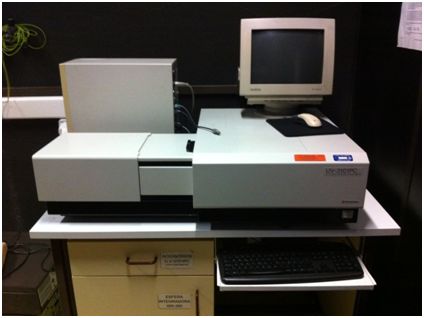

Shimadzu UV-3101PC UV-VIS-NIR Spectrophotometer is a double-beam, direct ratio measuring system. This UV-3101 provides solutions in the analysis of films, powders, coatings, plastics and liquids. Shimadzu UV-3101PC contains two sets of three gratings to cover the wide wavelength range from the ultraviolet to the near-infrared. This gives a relatively constant energy and signal-to-noise.
Data is acquired through three basic modes: wavelength scanning, quantitative, and time scanning, with the software allowing control of all acquisition parameters and storage formats. Post analysis manipulation includes arithmetic manipulation and transformation of data,

Our Shimadzu UV-3101PC is equipped with an ISR-260 Integrating Sphere Attachment. This attachment is used for reflection and transmittance measurement of opaque, translucent, and turbid samples over a wide wavelength range from 240 nm to 800 nm.

Specifications UV-3101PC:
Wavelength: 190nm~3200nm
Spectral band width (slit width)
9 steps in ultraviolet/visible region; 0.1, 0.2, 0.5, 0.8, 1, 2, 3, 5, 7.5nm
12 steps in near-infrared region; 0.4, 0.6, 0.8, 1.2, 2, 3, 4, 6, 8, 12, 20, 30nm
Resolution length range: 0.1nm
Wavelength scanning speed:
FAST 1600nm/min (with 2nm sampling interval)
FAST 700nm/min
MIDDLE 200nm/min These are the speeds when scanning with 0.5nm sampling interval.
SLOW 100nm/min
SUPER SLOW 50nm/min
Switching of the light sources
The light sources are switched automatically in conjunction with wavelength scanning. The wavelength at which the light sources are switched is selectable in the range of 282nm to 393nm in 0.1nm increments.
Photometric range
Absorbance: -4~5 Abs (up to 0.001 Abs.)
Transmittance: 0~999.9%T (up to 0.01%)
Reflectance: 0~999.9%R (up to 0.01%)

Specifications ISR-260:
Integrating sphere: 60 mm in inner diameter, with a builtin R446U photomultiplier
Maximum sample size for reflection measurement: 50W × 50H × 10Tmm
Sample cell holder for transmittance measurement: 10 mm square cell holder
Two BaSO4 white plates, two sample holder and BaSO4 powder (500g) are included.
