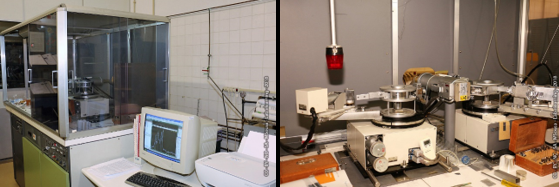

Sealed tube XRD – Rigaku DMAX-IIIC

Location: Lab -08 CENIMAT
Responsible: Braz Fernandes

Description:
The Rigaku diffractometer may run with Cu, Cr and Mo sealed tubes, based on a 3 kW generator to run conventional general identification scans.
Specifications:
- a high voltage generator (3kW),
- sealed tubes of Cu, Cr and Mo,
- a horizontal right goniometer ( -3 < 20 < 160 ),
- 0/20 uncoupled motors,
- slits and radiation filter (Ni),
- graphite monochromators,
- scintillation detector,
- an informatic system for the data acquisition and processing,
- cooling system.
