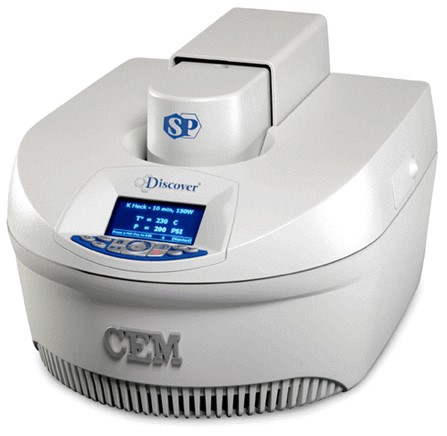

Microwave synthesizer – Discover SP

Location: Thin Film Lab
Responsible: Ana Pimentel

Description:
Microwave technology has become a common tool for chemical synthesis both in academia and industry. Compared to conventional means of synthesis, the advantages of heating with a microwave include: faster reaction times, improved purity, greater yields, better reproducibility, and enhanced reaction control.
Specifications:
-    Heating rate: 2-6ºC/second
-    Temperature: 30-300ºC volume independent infrared (IR) temperature measurement fiber optic (FO) temperature measurement
-    Pressure: 0-30 bar ( 0-435 psi)
-    ActiVent TM technology for safe and automated vessel vent and reseal
-    Operating volume: 0.2-25ml (standard pressurized)
-    5-50ml (80 ml pressurized)
-    0.2-75 ml (atmospheric)
-    Power: 0-300W
-    Magnetron frequency: 2450 MHz
-    Reaction agitation: Electromagnetic stirring with adjustable speeds (teflon coated stir bars are suitable)
-    System control: SynergyTM software and/or on-board key pad
-    Accessories: Fiber optic (in situ temperature measurement) 80 ml scale-up vessel (15-50 ml working volume)
