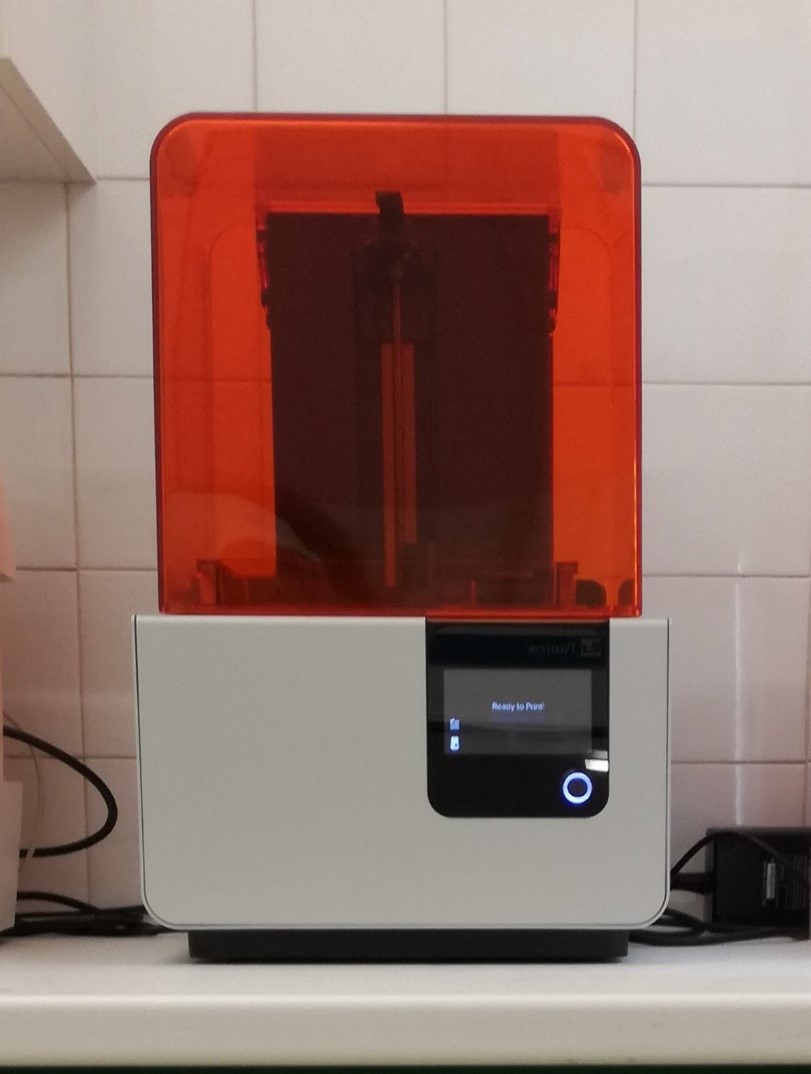

3D Printer - Form 2

Location: Thin Film Lab
Responsible: Sara Silvestre

Description:
The Form 2 is a stereolithography (SLA) 3D printer. Stereolithography is an additive manufacturing - commonly referred to as 3D printing - technology that converts liquid materials into solid parts, layer by layer, by selectively curing them using a light source in a process called photopolymerization. SLA is widely used to create models, prototypes, patterns, and production parts for a range of industries from engineering and product design to manufacturing, dentistry, jewelry, model making, and education.
Specifications:
-    Technology: Stereolithography (SLA)
-    Weight: 13 kg:
-    Build Volume: 45 × 145 × 175 mm
-    Operating Temperature: Auto-heats to 35° C
-    Temperature Control: Self-heating Resin Tank
-    Laser Specifications: EN 60825-1:2007 certified; 405nm violet laser; 250mW laser.
-    Laser Spot Size (FWHM): 140 microns
-    Connectivity: Wifi, Ethernet and USB
-    Optical Path: Protected
-    Layer Thickness (Axis Resolution): 25, 50, 100 microns
-    Supports: Auto-Generated Easily Removable
-    Material Properties: Methacrylate Photopolymer Resin
-    Supported file types: STL and OBJ
-    Print Materials :
     - Black resin:  https://formlabs.com/media/upload/Black-SDS.pdf
     - White resin: https://formlabs.com/media/upload/White-SDS.pdf
    -  High Temp resin: https://formlabs.com/media/upload/HighTemp-SDS.pdf
    - Durable resin: https://formlabs.com/media/upload/Durable-SDS-201.pdf
   -  Flexible resin: https://formlabs.com/media/upload/Flexible-SDS_eSMv2T6.pdf
