Dilatometry

Location: Lab 104 DCM
Responsible: Margarida Lima

Description:

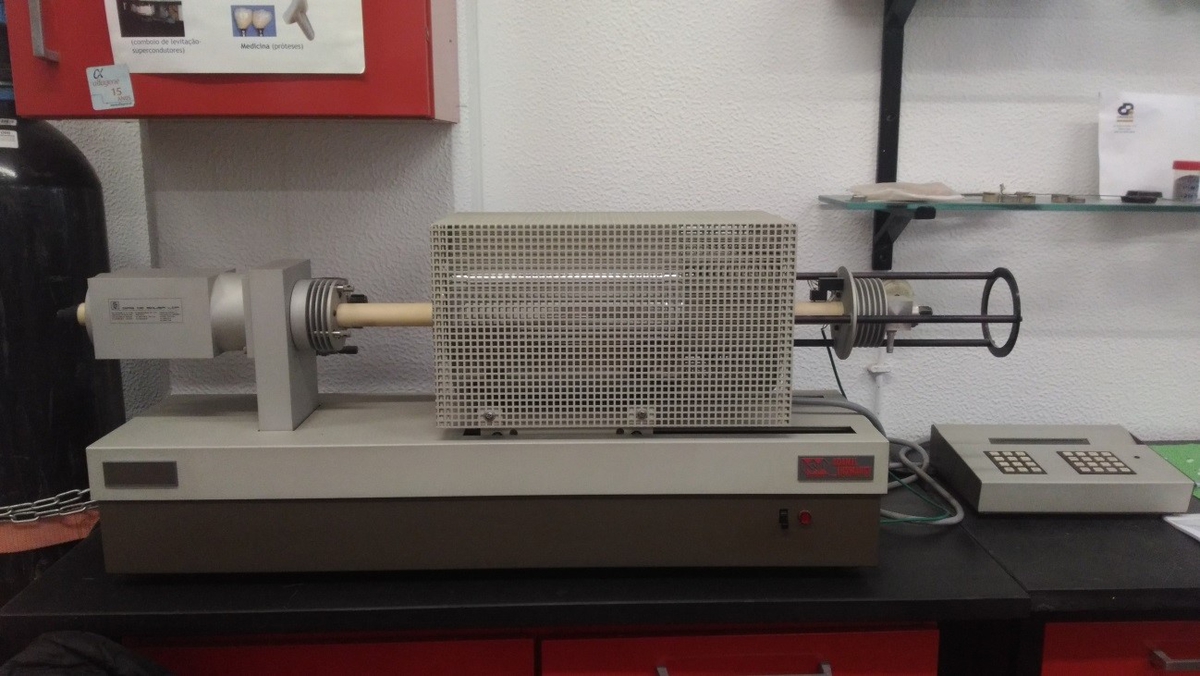

A dilatometer is a precision instrument for the measurement of dimensional changes in material as a function of temperature. Dilatometry can be used to test a wide range of material including traditional and advanced ceramics, glasses, metals, and polymers. It provides measurements of a wide variety of properties including linear thermal expansion, coefficient of thermal expansion, sintering temperature, shrinkage steps, phase transitions, density change, softening point and decomposition temperature, anisotropic behavior, and glass transition temperature. ADAMEL LHOMARGY DI-24 dilatometer offer high resolution and stability across a broad measurement range. The horizontal configuration provides users flexibility in sample placement and geometry making it easy and versatile solution.
Specifications:
-    Temperature Range: Room Temperature to 1400°C
-    Temperature Resolution: 0.1°C
-    Max Displacement: 2mm
-    Atmosphere: Air, Inert Gas
-    Sample Dimensions: 10 to 50mm long x max diam. 12mm
-    Sample Holder: Alumina
-    Rate of Increase: 1 to 10°C/min
