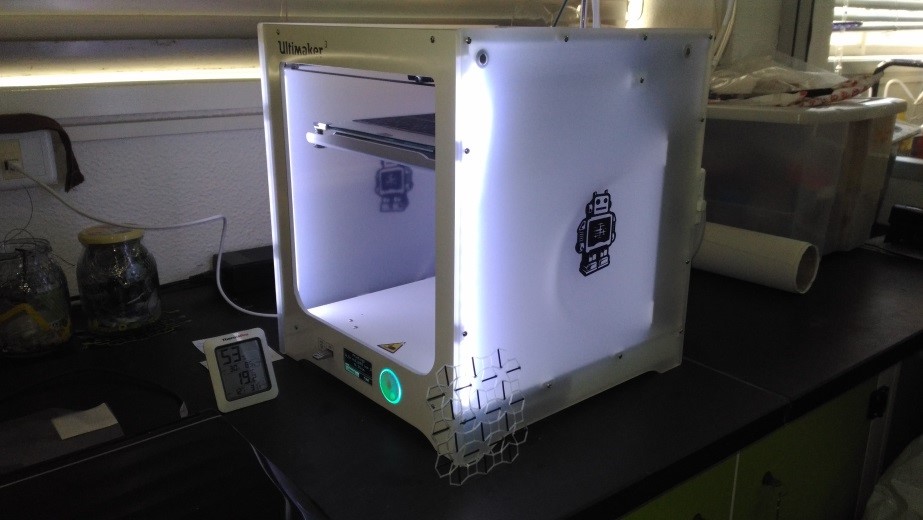

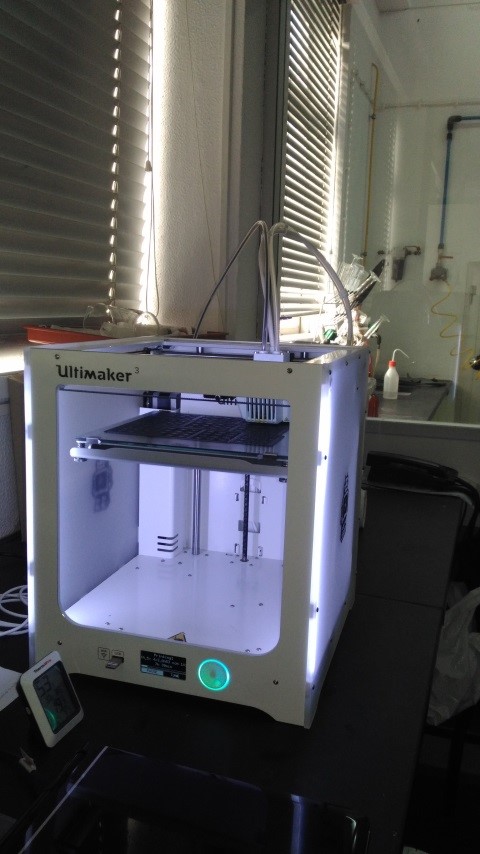

3D Printer - Ultimaker III

Location: Lab 101 D DCM
Responsible: Alexandre Velhinho, João Paulo Borges

Description:
The Ultimaker 3 is a multifunctional 3D printer. Combine build and water-soluble support materials to create complex mechanical parts and intricate surfaces or choose to print with two colors. Ultimaker 3’s unique auto nozzle-lifting system ensures a smooth, professional finish with every print.

Specifications:
- Print Technology: fused filament fabrication (FFF)
- Print Head: Dual extrusion print head
- Filament Diameter: 2.85 mm
- Printer Size: 342 x 380 x 389 mm
- Build Volume: 197 x 215 x 200 mm
- Print Head Travel Speed: 30 to 300 mm/s
- Build speed < 24 mm³/s
- Nozzle Diameter: 0.25, 0.40 and 0.80 mm
- Layer Resolution: 20 - 200 micron
- Supported Material: ABS, Breakaway, CPE, CPE+, Nylon, PC, PLA, PP, PVA, Tough PVA and TPU
- Nozzle Temperature: 18° - 280° C
- Build Plate Temperature: 20° to 100° C
- Connectivity: Wi-Fi and USB connectivity
- Print Preparation: Cura – Official Ultimaker Software (free)
- Supported OS: Mac OS X, Windows, Linux
- Supported file types: STL, OBJ, X3D and 3MF
