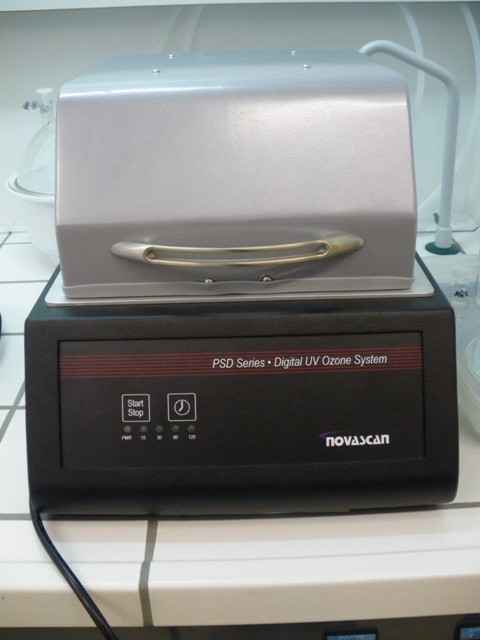

UV-Ozone Cleaner - Novascan PSD-UV integrated with an ozone elimination system

UV-Ozone Cleaner - Novascan PSD-UV (1 unit)
UV-Ozone Cleaner - Novascan PSD-UV integrated with an ozone elimination system (1 unit)
Location: Chemical Lab
Responsible: Rita Branquinho

Description: Ultraviolet Ozone Systems are widely used in the electronics and semiconductor industries as well as in scientific research fields including biology, chemistry, physics and materials science. These systems have proven highly effective for the removal of molecular organic contamination and surface preparation via intense ultraviolet light emitted at wavelengths of 185 nm and 254 nm. In the presence of ambient oxygen this emission results in significant O3 production and molecular excitation. This combination drives the destruction of molecular-level organic contamination on a number of substrates including silicon, silicon nitride, glass, quartz, metals and ceramics.

Specifications:
•    The PSD remove organic contaminates
•    UV lamp generates UV light at both 185nm and 254nm
•    Produces O3 and provides molecular excitation
•    Operates at atmospheric pressure with ambient air or oxygen
•    Multiple gas ports for the introduction of gases
•    Sample Stage with Adjustable sample to lamp distance
•    Safety switched to prevent user exposure to UV light
•    Simple operation and compact footprint
•    First rate technical support and customer service
